I put together a short tutorial on how to connect your Chrony to your PC.
I started out searching the www for how to do it, and got a breakthrough on the Yellow:
http://www.network54.com/Forum/79537/th ... le+for+USB
I am using a demo (free) vesion of ChronoConnect: http://www.chronoconnect.com/
Here is a picture of the RS232-USB connector. I bought my converter off e-bay http://cgi.ebay.ca/ws/eBayISAPI.dll?Vie ... 6689987015
It took 2 weeks to arrive in my mailbox, and 5 minutes to hook it up.
There are 4 TTL pins on the edge, GND goes to the back of the headphone jack, TX to the middle, and RX to the tip.

The USB port powers up the Chrony, although it flashes LB the connection works fine.

Then you fire up ChnonoConnect (in demo mode, unless you buy a licence):

You have to click on the top left line Chronohraph:, select your make (Chrony in my case), then the COM port. Only one port should be available normally. In Demo mode the software doesn’t remember any settings so you have to go through this each time you start up the program.

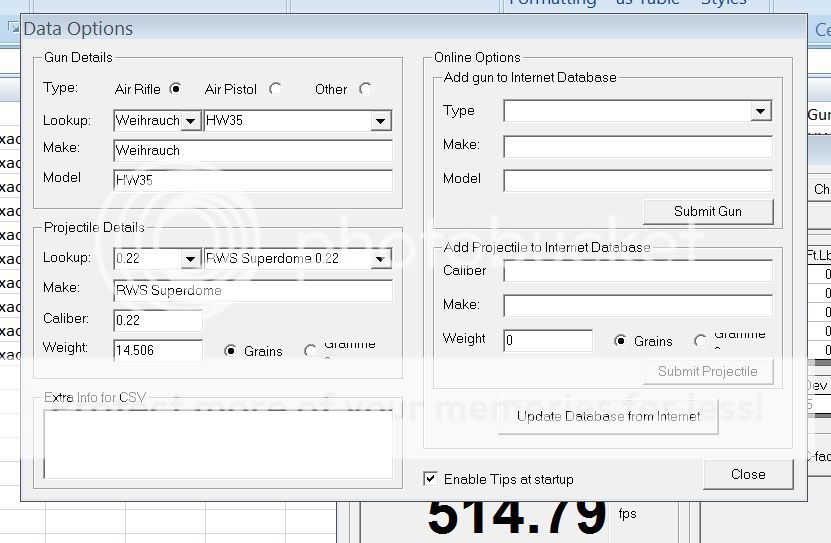

Then you click on Gun: Select rifle or pistol, and then select the make model calibre and enter the pellet info or select from the list.

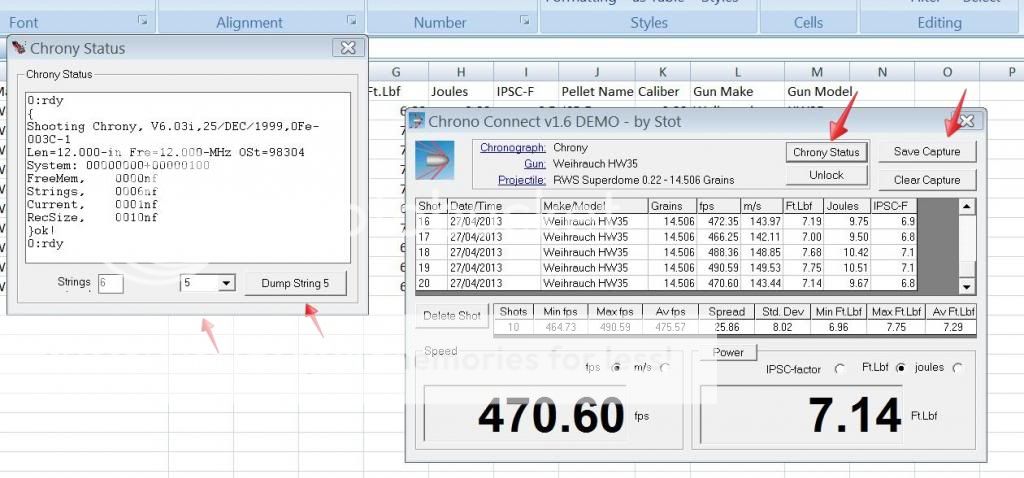

Now you are ready to dump data from the Chrony. I have only dumped data from memory so far, haven’t tried it in on-line mode. To dump the data to the PC, click on Chrony Status box (upper right)

And a new window opens with some gibberish, there is a pull down box at the bottom, so you can select which string you want to dump to the PC… in my example it’s string 5… and there are 6 strings stored. Then click the Dump String # button and the spreadsheet will fill up.

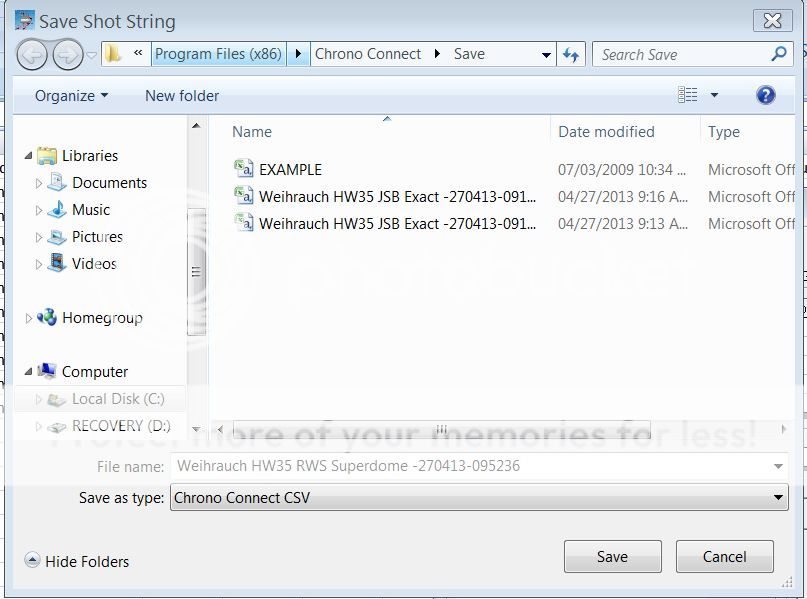

You can then click the Save Capture button on the upper right and a PC save screen opens up with the default to save to the root directory of the program, and with a filename taken from the gun and pellet description.

Repeat as required.

The ChronoConnect website also allows you to graph your shot string, if you don’t know how, or can't bother open the .CSV file in Excel to plot it manually. http://www.chronoconnect.com/?page=graphme

You just Browse to your CSV file and then Upload it and viola… your string is plotted.

Total cost, $2.22 and a scrounged old headphone cable.
Enjoy. :drinkers:

_________________

Duke ))))----//----------==


Top
 Profile

PostPosted: Sat Apr 27, 2013 10:13 am
Offline

Joined: Wed May 12, 2010 12:21 pm
Posts: 1099
Wow!! That's an excellent tip!! I'll be looking into it for sure. Quick and easy record keeping ( not my strong suit at all :roll: ) and the ability to graph results.

Thanks for posting this!!

Dave


Top
 Profile

PostPosted: Sat Apr 27, 2013 10:27 am
Offline
User avatar

Joined: Thu Oct 13, 2005 6:52 pm
Posts: 7143
Location: Vancouver Island BC
Very very cool i think this should be a sticky nice work ..........


Top
 Profile

PostPosted: Sat Apr 27, 2013 10:57 am
Offline
User avatar

Joined: Mon Dec 29, 2008 3:22 pm
Posts: 2394
Location: Stavely, Alberta
Excellent stuff, Duke.

Thanks a bunch :D

DaveD :D

_________________

"To anger a conservative, lie to him. To anger a liberal, tell him the truth." ~ Theodore Roosevelt


Top
 Profile

PostPosted: Sat Apr 27, 2013 10:59 am
Offline
User avatar

Joined: Wed Feb 27, 2013 12:01 am
Posts: 188
Location: Alberta
Thanks for posting that, very interesting.

_________________
Mac Granite


Crosman Nitro Venom Dusk .22
Diana 24 .22
Daisy 953 .177


Top
 Profile

PostPosted: Sat Apr 27, 2013 11:10 am
Offline
User avatar

Joined: Thu Feb 02, 2006 11:35 pm
Posts: 3099
Location: Alberta Canada
STICKY :lol: :lol: :lol:

_________________
May the cry of the pack be with you upon your hunt

Whitewolf


Top
 Profile

PostPosted: Sat Apr 27, 2013 11:30 am
Offline
User avatar

Joined: Thu Mar 15, 2012 6:38 pm
Posts: 1267
Location: Near London Ontario
Now THIS, is some cool $h!t!

_________________
Airgun Addicted since 2012!


Top
 Profile

PostPosted: Sat Apr 27, 2013 11:35 am
Offline
User avatar

Joined: Sat Apr 16, 2011 5:58 am
Posts: 495
Location: Eastern Ontario
Awesome info, Duke, will be very useful for sure! 8)

Thank you much for posting that!


Cheers,
Todd

_________________
Cheers,
Todd


Top
 Profile

PostPosted: Sat Apr 27, 2013 11:36 am
Offline
User avatar

Joined: Thu Mar 15, 2012 6:38 pm
Posts: 1267
Location: Near London Ontario
From the looks of it, you can buy the software and the cable for 32 pounds. When the cable arrives, your set and ready. Mine is on the way!! $54 CAD for the complete version of the software, 3 unlock codes (so you can have it on up to 3 computers) and the cable to connect your Chrony.

_________________
Airgun Addicted since 2012!


Top
 Profile

PostPosted: Sat Apr 27, 2013 11:55 am
Offline

Joined: Sun Nov 06, 2011 2:16 pm
Posts: 1638
Location: 1/2 Way From Ottawa and Montreal,
sell me your kit how much?

_________________
Custom Design by ME PCP/HPA Air Carbine 10-50X60 Scope My 2018 FT Open


Top
 Profile

PostPosted: Sat Apr 27, 2013 12:16 pm
Offline
User avatar

Joined: Fri Dec 30, 2005 2:14 am
Posts: 1677
Location: Calgary, Alberta
Awesome! Thanks for the post!

_________________
"The key to immortality is first living a life worth remembering."

Bruce Lee


Top
 Profile

PostPosted: Sat Apr 27, 2013 3:20 pm
Offline
User avatar

Joined: Mon Dec 29, 2008 3:22 pm
Posts: 2394
Location: Stavely, Alberta
Downloaded the Software and ordered the Converter. 8)

Thanks Duke :wink:

DaveD :D

_________________

"To anger a conservative, lie to him. To anger a liberal, tell him the truth." ~ Theodore Roosevelt


Top
 Profile

PostPosted: Sat Apr 27, 2013 5:17 pm
Offline
User avatar

Joined: Sat Nov 06, 2010 8:53 am
Posts: 6466
Location: Montreal
So now you must be careful to not shoot your chrony AND your laptop!

_________________
Facebook is like ancient Egypt, people write on walls and worship cats

You can’t buy a single airgun for everything. Golfers use many different clubs, airgunners need more than one gun


Top
 Profile

PostPosted: Sat Apr 27, 2013 5:29 pm
Offline

Joined: Sun Nov 06, 2011 2:16 pm
Posts: 1638
Location: 1/2 Way From Ottawa and Montreal,
DocGadget wrote:
So now you must be careful to not shoot your chrony AND your laptop!



LMAO been there done that, so I will keep laptop away. chrony 90$ laptop 400$ plus

_________________
Custom Design by ME PCP/HPA Air Carbine 10-50X60 Scope My 2018 FT Open


Top
 Profile

PostPosted: Sat Apr 27, 2013 6:05 pm
Offline
User avatar

Joined: Thu Mar 15, 2012 6:38 pm
Posts: 1267
Location: Near London Ontario
FRANK wrote:
DocGadget wrote:
So now you must be careful to not shoot your chrony AND your laptop!



LMAO been there done that, so I will keep laptop away. chrony 90$ laptop 400$ plus


I use a mac. It's going nowhere NEAR the chrony!!
