Never work when tired

#1 Post by DoctorFrankengun »

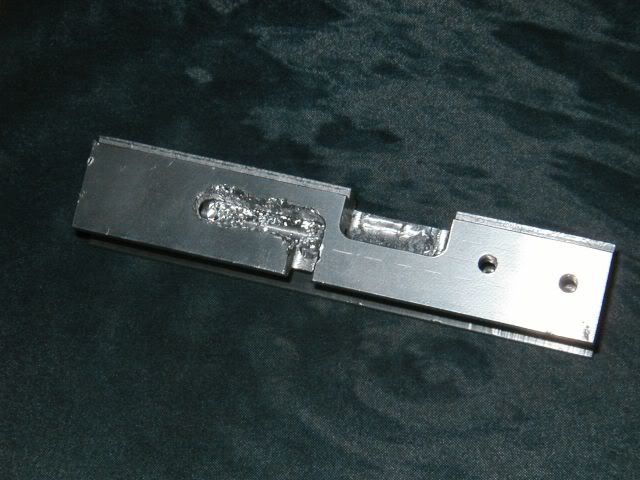

One little slip with a dremel tool :cry:

Oh well, start again tomorrow :roll:

Top
User avatar
supersundance
Posts: 351
Joined: Fri Sep 09, 2005 9:21 pm
Location: ontario, canada

man thats rough.

#2 Post by supersundance »

I hate seeing great work go down the tubes. At least you have the time to do it again :?
Top
User avatar
sniper
Admin-2-IC
Posts: 9769
Joined: Thu Sep 01, 2005 6:19 pm
Location: On, CA
Contact:
Contact sniper

#3 Post by sniper »

Damn ..... sorry to hear about that.
That happened to me too sometime, I'd get so frustrated and just drop everything, get some rest and start over .......
Top
jezX
Supporting Member 2013
Posts: 1689
Joined: Wed Sep 14, 2005 9:47 pm
Location: 123 gun street Nova Scotia

#4 Post by jezX »

i just wanted to sujust that the barrel set skrews be put in the top. then it will tighten the barrel to the exaust better.
also ? why not mill the slot ant 1/4'' it would look nice with a 1/4'' handle .
or take a ball end mill and shell it out . that would look nice .
it's still use able id just clean it up
Top
User avatar
ETA
Posts: 889
Joined: Thu Sep 01, 2005 7:03 pm
Location: BC Canada

Re: Never work when tired

#5 Post by ETA »

Metalmuncher49 wrote:One little slip with a dremel tool :cry:

Oh well, start again tomorrow :roll:

Fixable. Just chamfer the outer edges on the handle slot and loading port. You need to do that anyways to not cut youself. :wink:
With the probe in place, you won't see the scuff on the inside.
Top
User avatar
DoctorFrankengun
Posts: 1657
Joined: Thu Sep 08, 2005 1:58 pm
Location: Cochrane, Ontario Canada

#6 Post by DoctorFrankengun »

I may try to fix it but it will have to wait until I get in the right frame of mind #-o

jezX, I bought a ream so there is a very close fit where the barrel goes into the breach, but I will put the set screws in the top on the next one.
Top
RM422
Posts: 1186
Joined: Sat Sep 03, 2005 8:37 am
Location: ontario

#7 Post by RM422 »

Just curious as to what kind of metal you use for making those breaches? I'm a pretty handy guy so I could probably make one myself. And exaclty what tools are you using to make it. I'm more of a carpenter than a machinist.
ONE SHOT, ONE KILL
Top
User avatar
DoctorFrankengun
Posts: 1657
Joined: Thu Sep 08, 2005 1:58 pm
Location: Cochrane, Ontario Canada

#8 Post by DoctorFrankengun »

RM422 wrote:Just curious as to what kind of metal you use for making those breaches? I'm a pretty handy guy so I could probably make one myself. And exaclty what tools are you using to make it. I'm more of a carpenter than a machinist.
This (my first) is aluminium. It might be possible to build one with woodworking tools but it would take a lot of thought and quite a few custom built jigs. I used a metal lathe, shaper, milling machine and drill press.
Top
RM422
Posts: 1186
Joined: Sat Sep 03, 2005 8:37 am
Location: ontario

#9 Post by RM422 »

Thanks for the info. But Wouldn't aluminum be a little soft? In my opinion brass would be a little better. But your breech looks great anyway. If you don't mind and could fill me in on little more of how to produce a metal breech it would be greatly apreciated.
ONE SHOT, ONE KILL
Top
RM422
Posts: 1186
Joined: Sat Sep 03, 2005 8:37 am
Location: ontario

#10 Post by RM422 »

What I really need to know is how exactly you cut the grooves. Using a lathe and drill press is no problem.
ONE SHOT, ONE KILL
Top
RM422
Posts: 1186
Joined: Sat Sep 03, 2005 8:37 am
Location: ontario

#11 Post by RM422 »

Also before I forget what are the dimensions of your metal breech. Width and height. thanks.
ONE SHOT, ONE KILL
